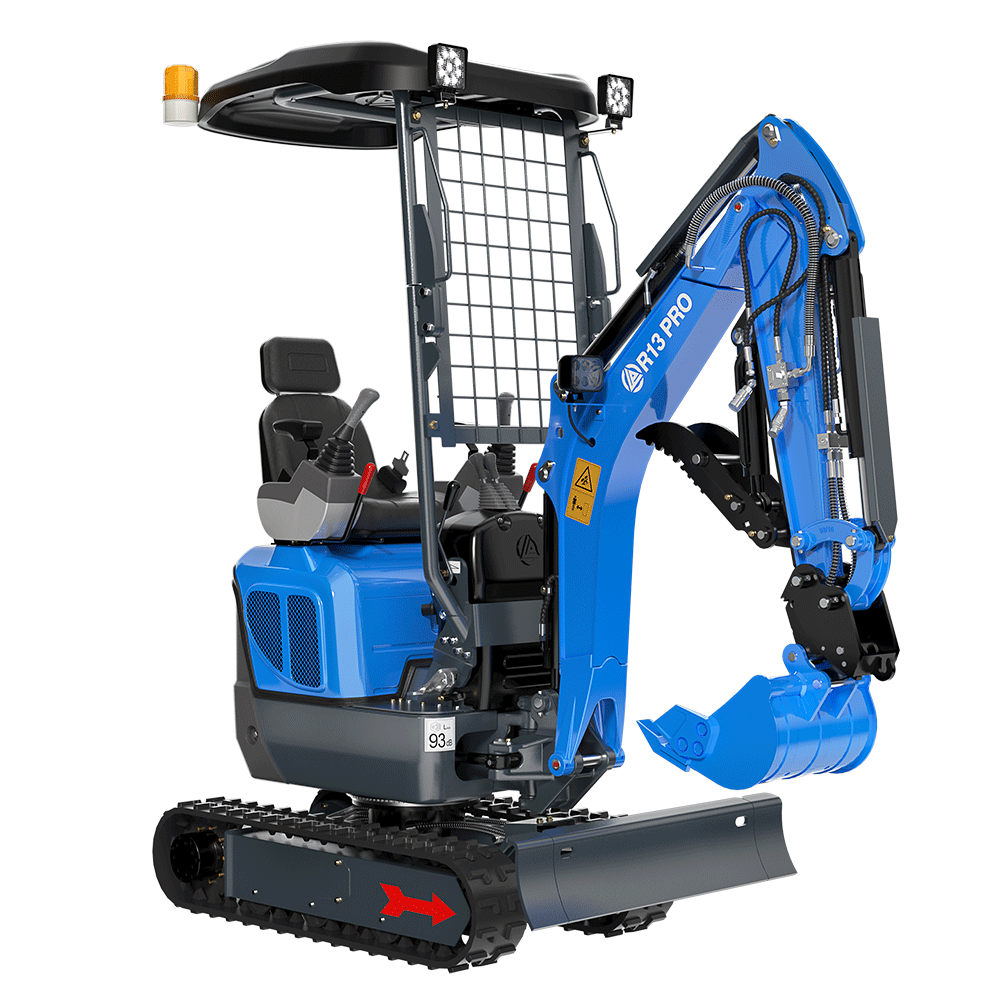

Mini-pelle R13
Mini-pelle R13
La mini-pelle R13 PRO est sans aucun doute un concurrent sérieux sur le marché du commerce d'exportation avec son excellente capacité de fonctionnement en espace étroit, ses performances d'excavation hautes performances, son mode de fonctionnement flexible, sa conception de sécurité et de protection, sa durabilité et son entretien facile, sa conception humanisée et son transport et stockage efficaces.
Impossible de charger la disponibilité du service de retrait
- Fast local delivery — as quick as 7 days.
- Warranty Terms
- Lifetime Tech Support

Why choose rippa Group?
-
High Cost Performance
Owning our own factory and leveraging years of production experience, Rippa delivers machines with outstanding cost performance, ensuring unbeatable value for your investment.
-
Global service network
Rippa has multiple spare parts service centers around the world. Through the nearest service center, it can quickly activate the global express delivery mechanism to ensure that the spare parts are delivered to customers within three to five working days.
-
Comprehensive quality assurance
Rippa equipment has passed the certification of CE, EPA, SGS, TUV, ISO, Euro 5 and other organizations to ensure product safety and reliability. With more than 12 years of manufacturing history, our product quality is deeply trusted by customers.
-
Flexible maintenance policy
Warranty period: 1 year warranty for the whole machine for end customers, 3 years of accessories and installation support for agents from the date of purchase. Free detailed technical guidance

Image avec texte
Associez du texte à une image pour mettre en valeur le produit, la collection ou l'article de blog que vous avez choisi. Ajoutez des détails sur la disponibilité, le style ou même un avis.

Four-way broken oil pipe with quick connector
Four-way crushing oil pipe, so that the hydraulic thumb clamp (optional), hydraulic quick change (optional) and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience

Butter mouth
The grease ports (also called lubrication nipples or grease nipples) on an excavator's boom are primarily used to lubricate the pins and bushings, preventing dry wear and increasing service life. You mentioned "boom preview," and I understand you want to know the location of the various grease ports on the excavator's boom for easier maintenance.

Selling Points
Model: R13
Engine: Kubota D722
Cylinders: 3
Rated Power: 10.2kw / 13.68 hp
Pump Type: Gear Pump * 3
Pump Flow Rate: 25L/min / 6.60 GPM
Combined Operation: 100%
Valve Control: 4-Way Hydraulic + Mechanical
Travel Motor: Dual-Speed, Swing Type
Swing Motor: Swing Type
Operating Weight: 1165kg / 2579.7 lb
Max Digging Depth: 1843mm / 72.5in
Min Width: 750mm / 29.53in
Tail Design: Zero-Tail
Track Length: 2952mm / 116.14in
Attachment Interfaces: 4
Counterweight: 148kg / 326.3 lb
Track Specifications: 180mm72mm41 links / 7.09in2.83in41 links
Track Type: Steel Track + Rubber Pads
Safety Features: TOPS, ROPS
Optional Cab: Available
