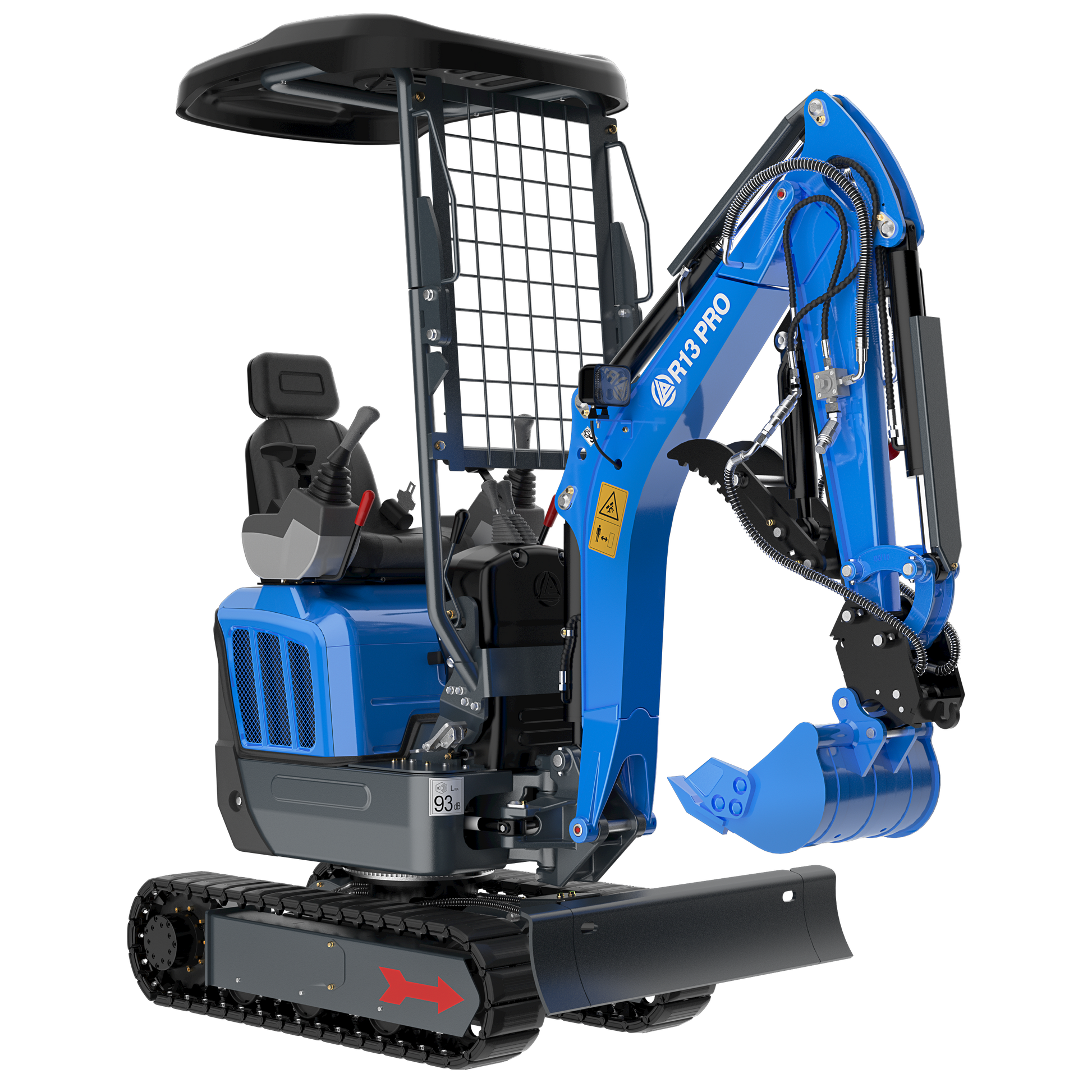

R13 pilot + roof + telescopic side swing Kubota D722 [LP02010979]

R13 pilot + roof + telescopic side swing Kubota D722 [LP02010979]

$15,088.00 USD
Log in to view prices
Sale Ausverkauft
Find a dealer
  • Fast local delivery — as quick as 7 days.
  • Warranty Terms
  • Lifetime Tech Support
Vollständige Details anzeigen

Why choose rippa Group?

  • High Cost Performance

    Owning our own factory and leveraging years of production experience, Rippa delivers machines with outstanding cost performance, ensuring unbeatable value for your investment.

  • Global service network

    Rippa has multiple spare parts service centers around the world. Through the nearest service center, it can quickly activate the global express delivery mechanism to ensure that the spare parts are delivered to customers within three to five working days.

  • Comprehensive quality assurance

    Rippa equipment has passed the certification of CE, EPA, SGS, TUV, ISO, Euro 5 and other organizations to ensure product safety and reliability. With more than 12 years of manufacturing history, our product quality is deeply trusted by customers.

  • Flexible maintenance policy

    Warranty period: 1 year warranty for the whole machine for end customers, 3 years of accessories and installation support for agents from the date of purchase. Free detailed technical guidance

Powerful Performance

The R13 is powered by the Kubota D722 engine, a 3-cylinder powerhouse delivering a rated output of 10.2kw (13.68 hp). Known for its high efficiency, low noise, and low emissions, this engine ensures reliable performance for small excavation tasks. Its energy-saving design and compliance with strict environmental standards make it a durable and eco-friendly choice.

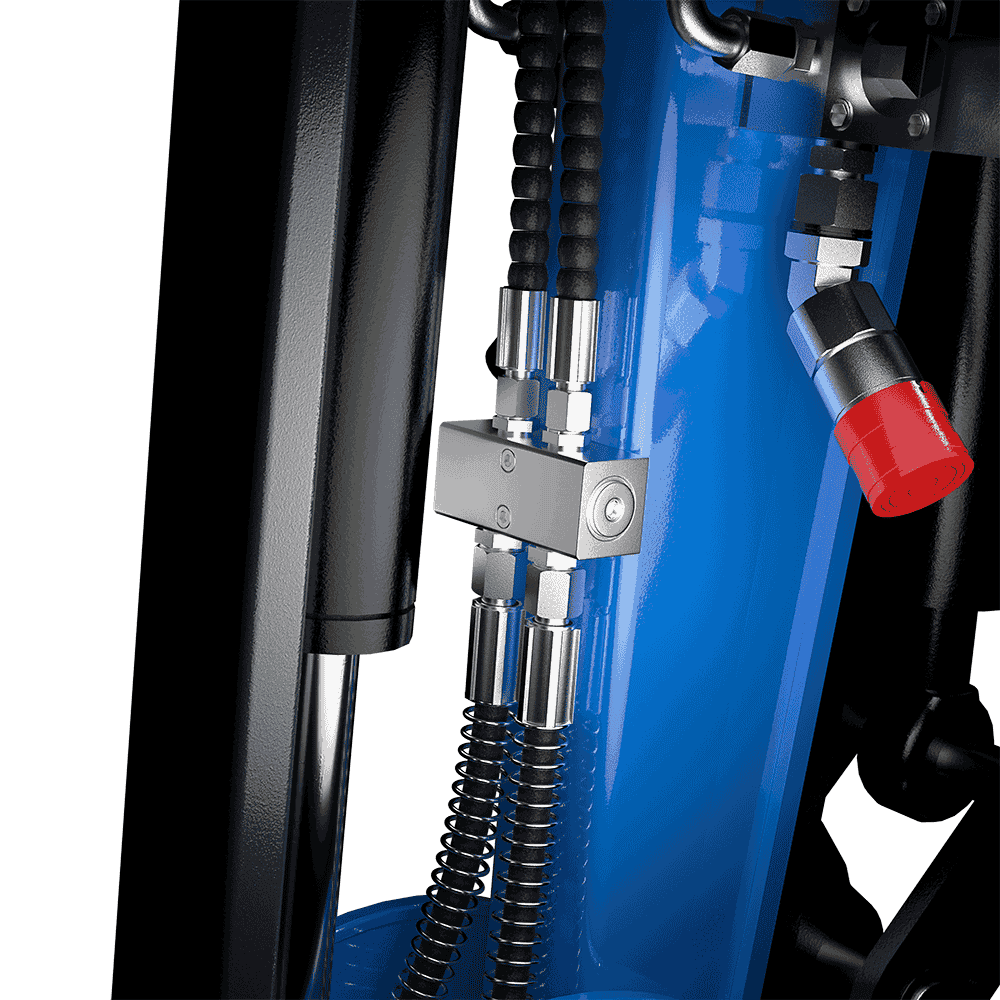

Four-way broken oil pipe with quick connector

Four-way crushing oil pipe, so that the hydraulic thumb clamp (optional), hydraulic quick change (optional) and accessories have separate oil circuits and are equipped with quick connectors to improve connection efficiency and operation convenience

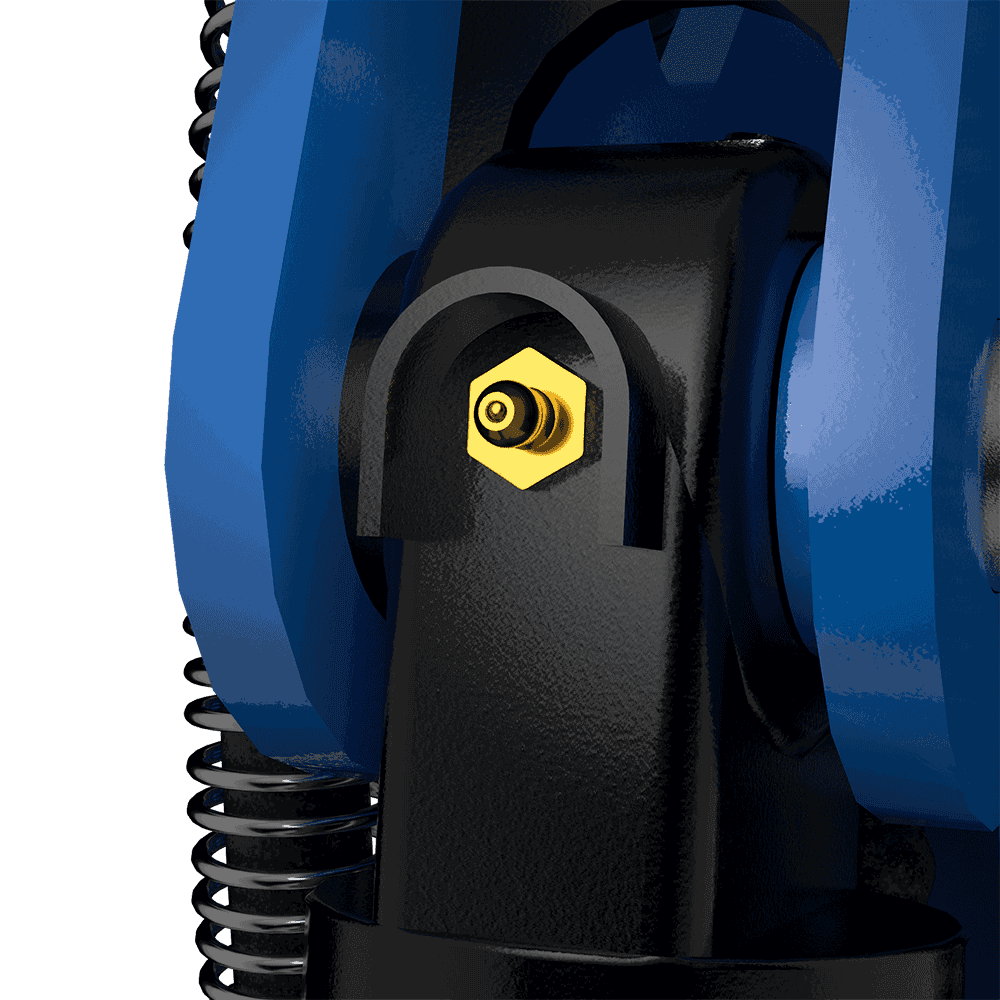

Butter mouth

The grease ports (also called lubrication nipples or grease nipples) on an excavator's boom are primarily used to lubricate the pins and bushings, preventing dry wear and increasing service life. You mentioned "boom preview," and I understand you want to know the location of the various grease ports on the excavator's boom for easier maintenance.

Selling Points

Model: R13

Engine: Kubota D722

Cylinders: 3

Rated Power: 10.2kw / 13.68 hp

Pump Type: Gear Pump * 3

Pump Flow Rate: 25L/min / 6.60 GPM

Combined Operation: 100%

Valve Control: 4-Way Hydraulic + Mechanical

Travel Motor: Dual-Speed, Swing Type

Swing Motor: Swing Type

Operating Weight: 1165kg / 2579.7 lb

Max Digging Depth: 1843mm / 72.5in

Min Width: 750mm / 29.53in

Tail Design: Zero-Tail

Track Length: 2952mm / 116.14in

Attachment Interfaces: 4

Counterweight: 148kg / 326.3 lb

Track Specifications: 180mm72mm41 links / 7.09in2.83in41 links

Track Type: Steel Track + Rubber Pads

Safety Features: TOPS, ROPS

Optional Cab: Available
